Elite Robots CPL07 Collaborative Palletizer – Lifting Column, up to 30 kg
$92,100.00

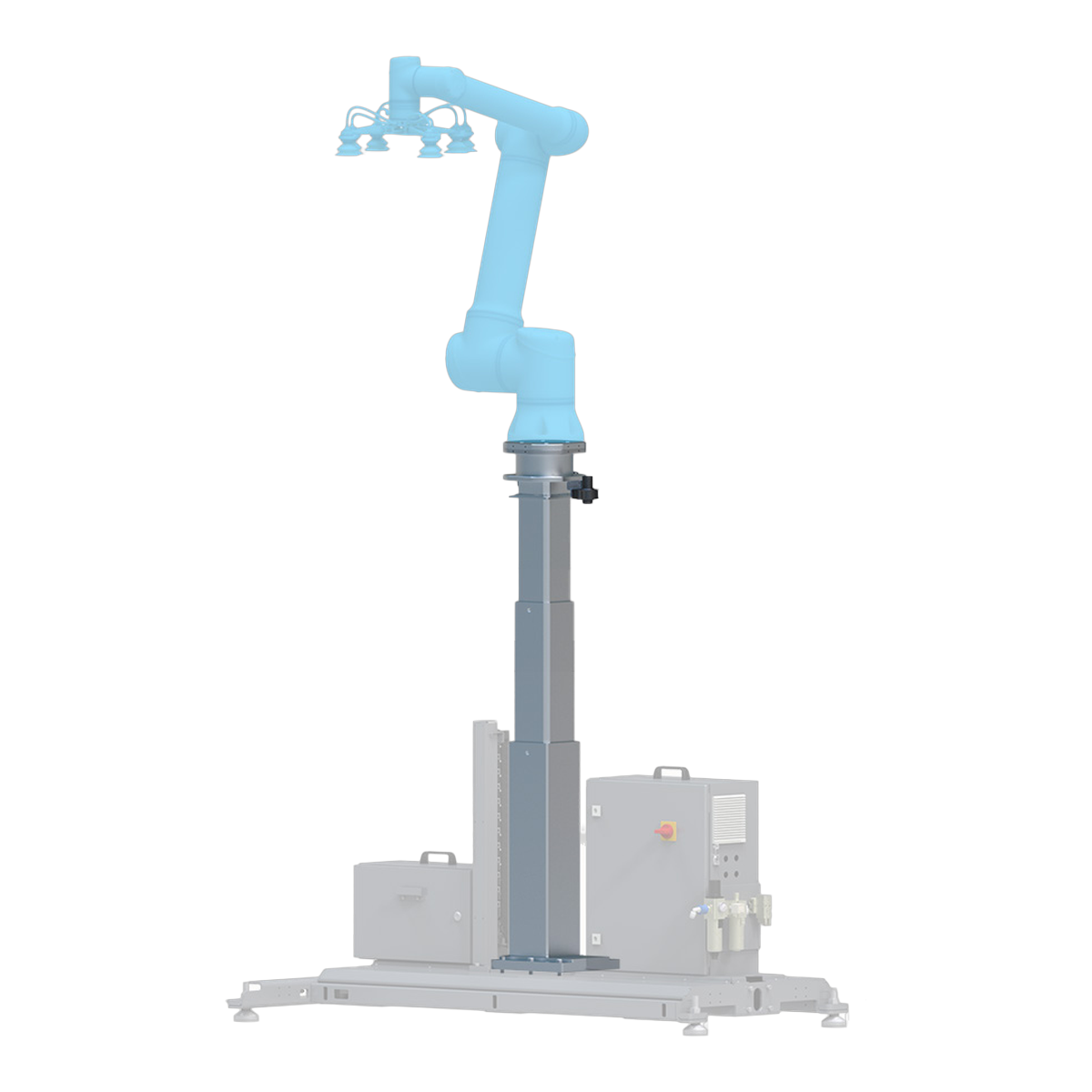

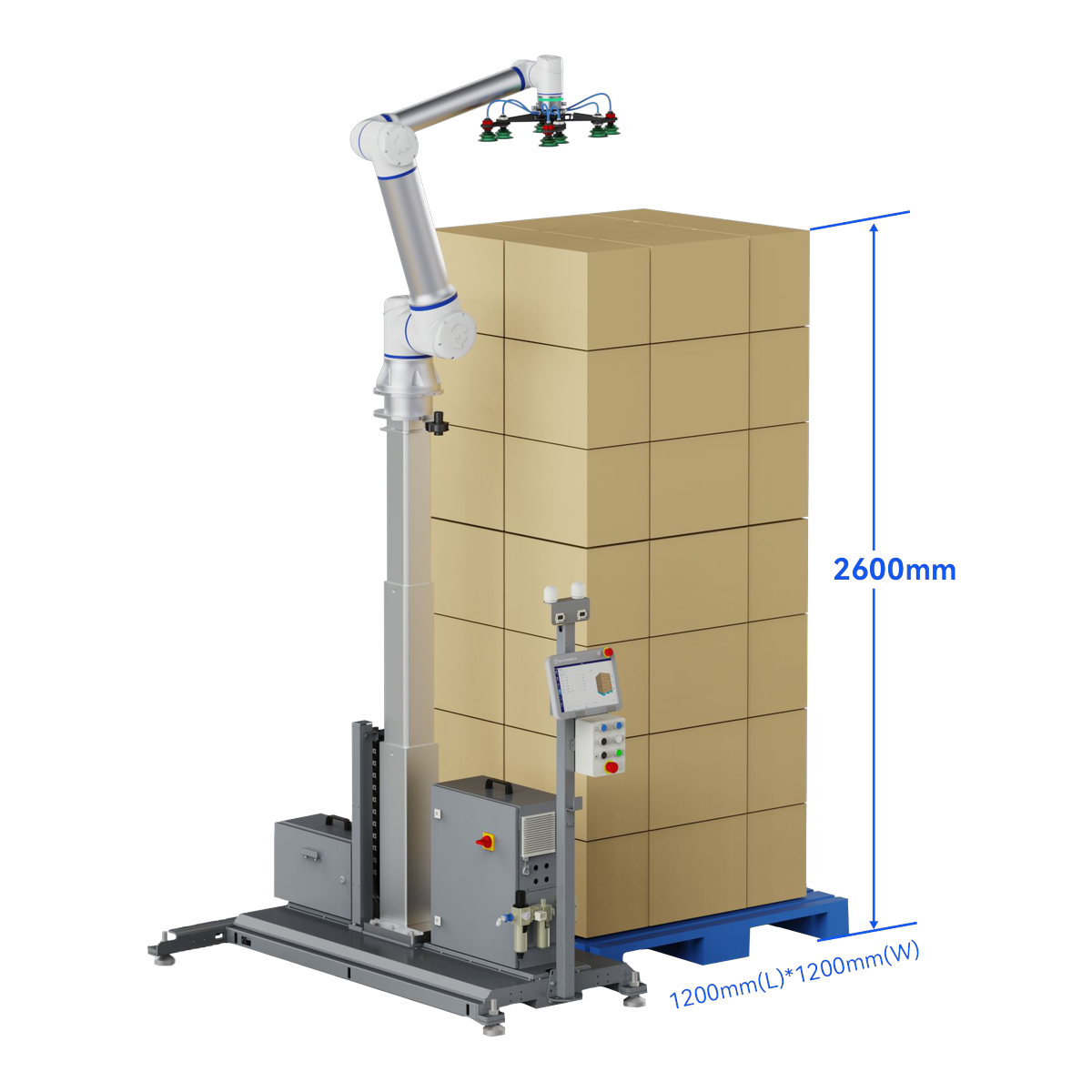

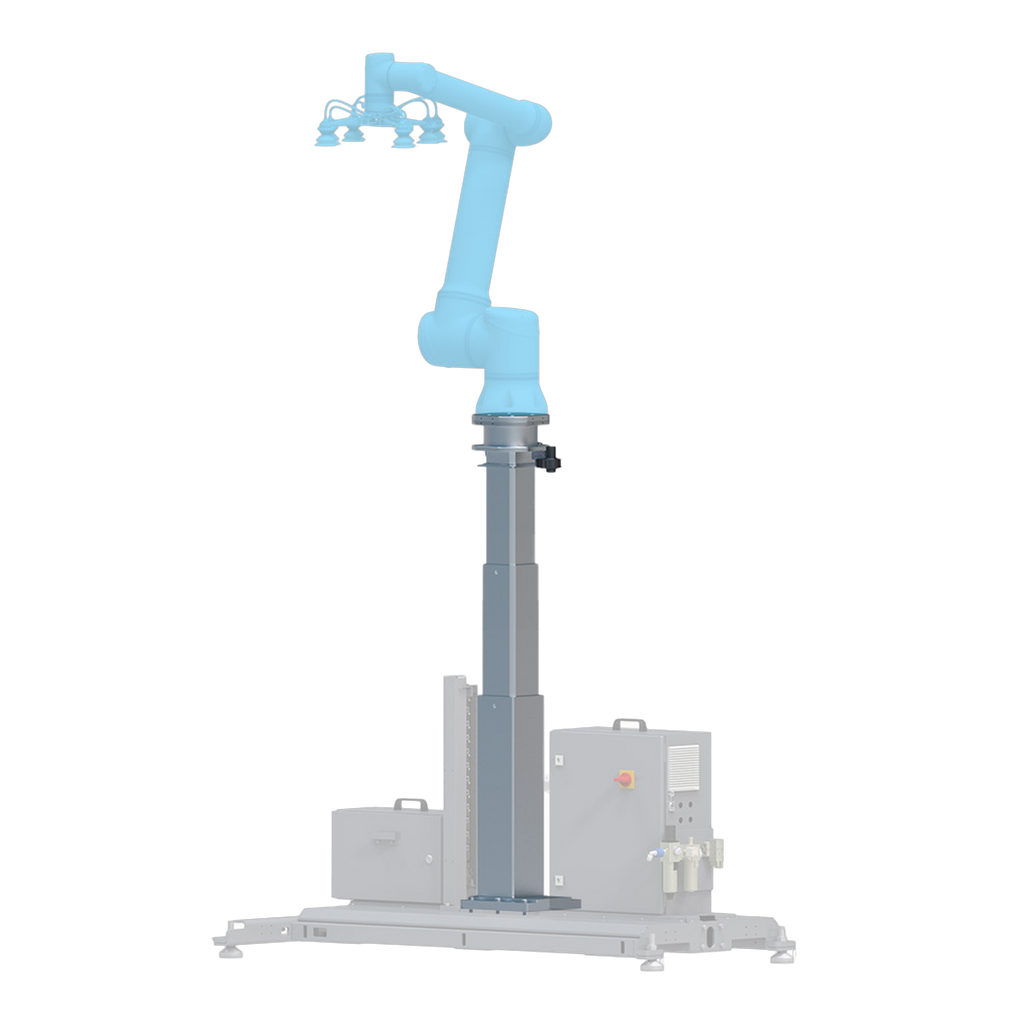

The CPL07 pairs an Elite Robots CS Series cobot with a lifting (telescopic) column, reaching stacking heights up to 2600 mm for full-height pallets.
The Elite Robots CP (Collaborative Palletizer) Series is an all-in-1, modular palletizing solution for end-of-line operations. It installs fast, right out of the box, and needs no programming skills thanks to the embedded palletizing wizard.
- High payload – up to 30 kg / 66.1 lb
- Up to 20 boxes/min with dual vacuum cup
- Interchangeable cobot arm – CS620, CS625 or CS530H
- Easy setup – palletizing wizard, fast setup and redeployment
Configurations
| Cobot arm | Payload | Max pallet size (W × L) | Max stacking height |
|---|---|---|---|
| CS620 | 20 kg / 44 lb | 1200 × 1200 mm / 47.2 × 47.2 in | 2600 mm / 102.3 in |
| CS625 | 25 kg / 55.1 lb | 1200 × 1000 mm / 47.2 × 39.3 in | 2300 mm / 90.5 in |
| CS530H | 30 kg / 66.1 lb | 1200 × 1000 mm / 47.2 × 39.3 in | 2300 mm / 90.5 in |
Performance & main specs
| Base column | Lifting (telescopic) column – 1700 mm standard, 1900 mm optional |
| Max speed | 10 boxes/min (single vacuum cup); 20 boxes/min (dual vacuum cup) |
| Operating temperature | 0 ~ 50 °C / 32 ~ 122 °F |
| Peak power consumption | 2 ~ 3.5 kW |
| Power source | Single-phase 220 VAC / 110 VAC, 50–60 Hz |
| Footprint | 1400 × 1700 mm / 55.1 × 66.9 in |
| End-of-arm tooling | Compatible with multiple vacuum gripper models; single or dual vacuum cup |
| Robot controller | CS Series standard controller |
| Operating station | Adjustable stand with integrated teach pendant and Elite Robots palletizing wizard |
| Safety | Optional safety scanner |
