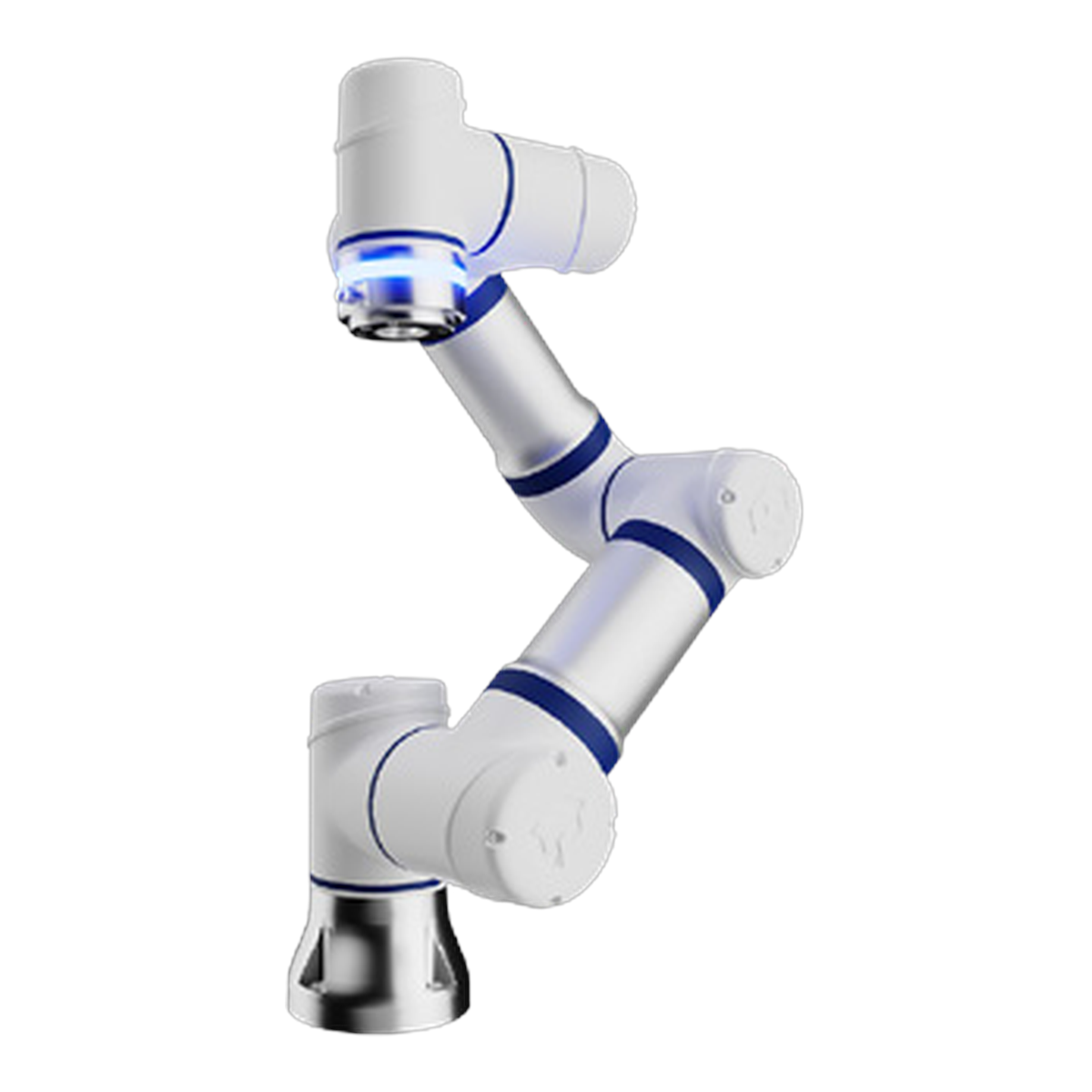

Elite Robots CS63 Collaborative Robot – 3 kg Payload, 624 mm Reach
$31,500.00
Compact, high-precision 3 kg cobot for small-part assembly, electronics, lab automation and machine tending in tight spaces.
The Elite Robots CS Series is the flagship collaborative robot platform, offering extra safety, ease of use and high expandability. Graphic programming with task-specific plugins, a detachable 10.1" ERP500 teach pendant with free-drive button, and a flexible SDK for custom plugins.
- Enhanced safety – 31 safety functions, collision detection with 90 adjustable levels
- Easy programming – graphical UI, application wizards, one-click upgrade/backup/restore
- Greater openness – Ethernet/IP, Profinet, Modbus, CC-Link; PNP/NPN switchable I/O
- Any environment – standard IP65, optional IP68
Technical specifications
| Payload | 3 kg / 6.6 lb |
| Reach (radius) | 624 mm / 24.5 in |
| Repeatability | ±0.02 mm |
| Max TCP speed | 2.0 m/s |
| Axes | 6 |
| Joint range | ±360° all joints |
| Joint speed | J1–J2 180°/s; J3 230°/s; J4 230°/s; J5–J6 230°/s |
| Typical power usage | 185 W |
| Arm weight | 15 kg / 33 lb |
| Footprint | 128 mm / 5 in |
| Mounting | Any orientation |
| IP rating | IP65 (optional IP68) |
| Operating temperature | -10 ~ 50 °C / 14 ~ 122 °F |
| Humidity | <90% (non-condensing) |
| Tool I/O | M8 8-pin, 0/12/24 V, 3A/2A/1A |
| Tool I/O ports | 4 configurable DI/DO, 1 AI, 1 AO, RS485 |
| Cable length | 5.5 m (optional 1.5 / 3 / 8 m; extensions up to 10 m) |
| Materials | Aluminum, steel, plastic, rubber |
| Programming | Python script, graphical UI, free-drag & offline programming |
| Safety | 31 safety functions: SF1–SF30 PL d Cat. 3, SF31 PL b Cat. 1; 90-level collision detection |
| Communication | Ethernet TCP/IP, Modbus TCP/RTU, Ethernet/IP, Profinet, RS485, CC-Link (optional) |
| Certifications | ISO 13849, ISO 10218, ISO/TS 15066, UL, CE, KCs, ISO 14644 Class 5 cleanroom, RoHS, SEMI-S2 |
Standard controller (ERB3C series) and ERP500 teach pendant; optional Mini/OEM DC controller and ERP500S pendant with 3-position enable key.
